Learn How to Connect To Magento API with CloverDX


Do you use Magento in your company? Have you been thinking of making Magento play together with your other applications such as a POS system? Or are you planning to automate your supply chain? That’s where extensive Magento API comes in handy and CloverDX is the perfect tool for handling the data integration part of it. Read further to learn how to retrieve data from Magento API using CloverDX.

Today we take a look at how CloverDX can help you transfer data back and forth between your Magento platform and other systems.

What is Magento?

Magento is an open-source e-commerce platform and content management system that you can use to build online stores. Magento provides all common e-commerce features such as shopping carts and inventory management. The platform is highly customizable and brings to you all the features to build an enterprise shopping website that would meet all you company specific goals.

Magento provides both REST and SOAP APIs. Both of them allow us to apply more or less the same operations to your Magento data. In this article I will be using Magento’s REST API. The SOAP version was not yet documented at the time of writing this text.

Magento API innovation

With the recent Magento 2 release the API was significantly extended with new functions making it now even easier to operate with third party solutions.

Moreover, Magento API has significantly enhanced its authentication options. While in older versions we were limited to using OAuth only, in Magento 2 we can also use token- and session-based authentication schemes.

To use Web Services in CloverDX we will use the generic HTTPConnector component and configure it to work with Magento REST API.

Using Web Services in CloverDX

CloverDX provides two generic components for working with web services. WebServiceClient for SOAP APIs and HTTPConnector for REST based interfaces.

With this generic approach you can easily build our own connectors and connect to any available web service no matter what the application specifics are.

When building connectors to modern web services, you often need to use multiple HTTPConnector components in sequence to retrieve authentication tokens, issue search query, retrieve resulting data, loop through response results and more. And this will also be the case of Magento.

Using Subgraphs to Create Magento Writer and Search Components

In the following example I am going to utilize CloverDX’s ability to wrap a piece of ETL process into a subgraph hiding the underlying logic from the user and showing only necessary configuration options. I will build two new components – MagentoCustomersWriter and MagentoCustomersSearch.

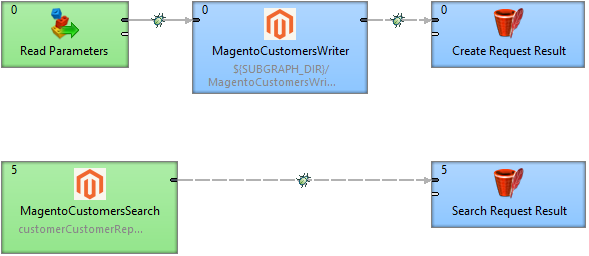

The idea is that the components can be later reused by anyone with just a few mouse clicks, no coding. This is what the resulting usage might look like:

Easy graph for connectiong to MAgento API

MagentoCustomersWriter and MagentoCustomersSearch are two new components that are easily configured with only few parameters. Both components require credentials for the Magento account.

The MagentoCustomersSearch component expects an email address that is used to query the customers’ repository.

MagentoCustomersWriter takes data records from its input port and writes them to Magento as customers.

Setting up subgraph for Magento API

Let’s dive into how these two components are built:

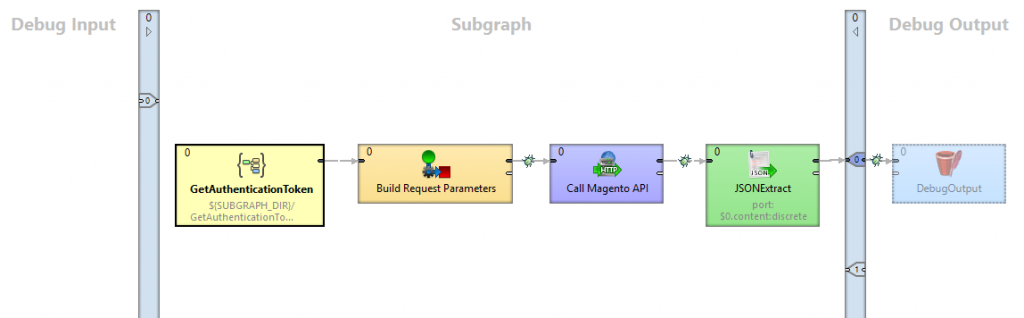

MagentoCustomersSearch Subgraph

MagentoCustomersSearch Subgraph to connect to Magento API

Inside the MagentoCustomersSearch subgraph, we need to make two calls to Magento API. First, we need to authenticate with Magento. We are using Magento’s token-based authentication in this example, so we need to request an authentication token (using our user name and password) for later use on the Magento administration page.

The authentication request itself is encapsulated in a shared subgraph called GetAuthenticationToken (we use the same piece of logic for both Magento components). From there we receive an authentication token which we will later pass to Magento. In the Call Magento API step, which is a HTTPConnector, we put together all required parameters and the authentication token and send out a customer search request. Lastly, we parse the JSON content of HTTP response containing the search results into a delimited records.

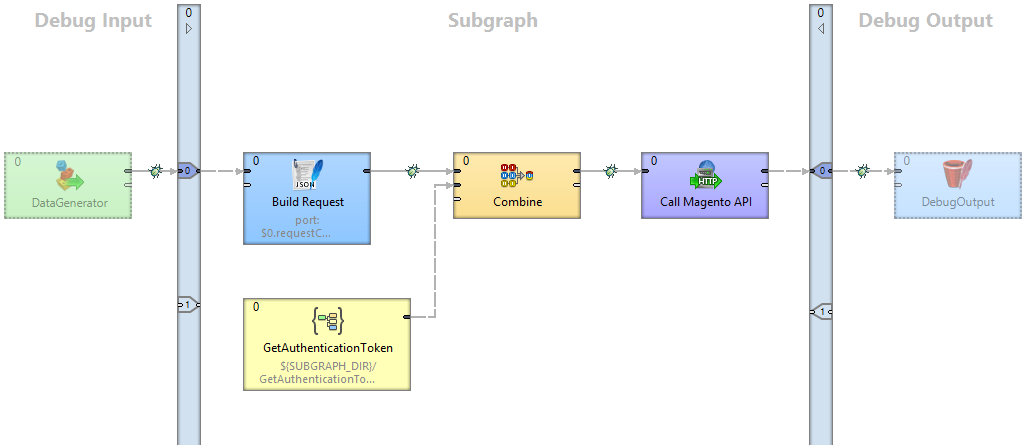

MagentoCustomersWriter Subgraph

MagentoCustomerWriter subraph to connect to Magento API

MagentoCustomersWriter receives data through its only input edge. First, we take input records and build a JSON request from them. At the same tame we ask Magento for the authentication token. Then we combine the request and the authentication token, build all request parameters and finally call the Magento API.

If the call succeeds, we pass the newly created customers to the output. In case of an error, we can read the error message from the output port.

Try It Yourself

You can download the example and customize it to your needs. This is how to get it up and running:

  1. Download Magento example project
  2. Import project into your CloverDX Designer. (Download a 45-day CloverDX Trial here)
  3. Open graphs/MagentoExample.grf

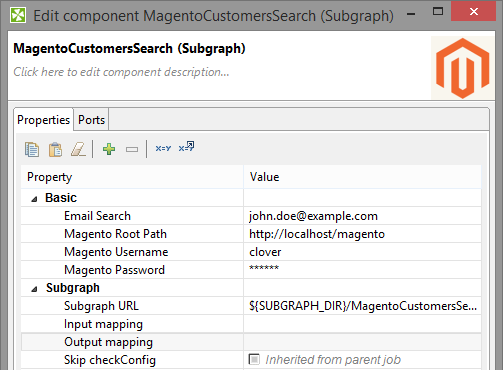

  4. Double-click MagentoCustomersSearch
    1. Set your Magento Username and Magento Password.

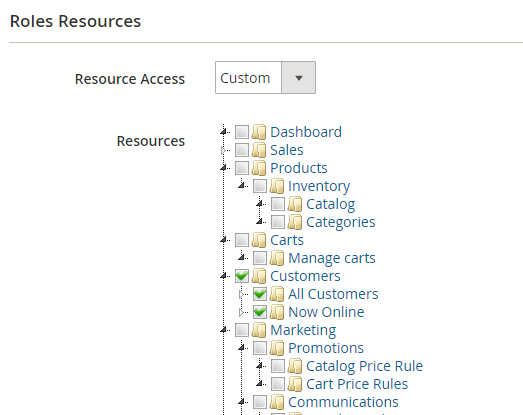

      If you forget to set these properly, the graph WILL finish OK, but won’t produce any data. You must be granted to manage at least Customers interface under Roles Resources in your Magento instance as displayed on below picture.

      Setting Magento to work with our example for Magento API

    2. Set Email Search to any email you want to search for. The component is configured to search for an exact match of the email.
    3. Enter URL of your Magento server root in Magento Root Path parameter e.g. http://localhost/magento.
  5. Double-click MagentoCustomersWriter and type your Magento Username, Magento Password and Magento Root Path same as in the previous step.
  6. That’s it! Now run the graph.
  7. Right-click the edge and View data check Data Inspector to see the results.

Experiment On Your Own

You can use this example as a basis for many other operations that you might want to run on Magento.

For example, with only a few clicks you can easily modify MagentoCustomersWriter to perform update operation on your Magento customer repository.

So there you have it. Once you get to know the API a little bit, creating connectors is quite easy. Feel free to use this example as a template for some great work!

Posted on March 24, 2016
